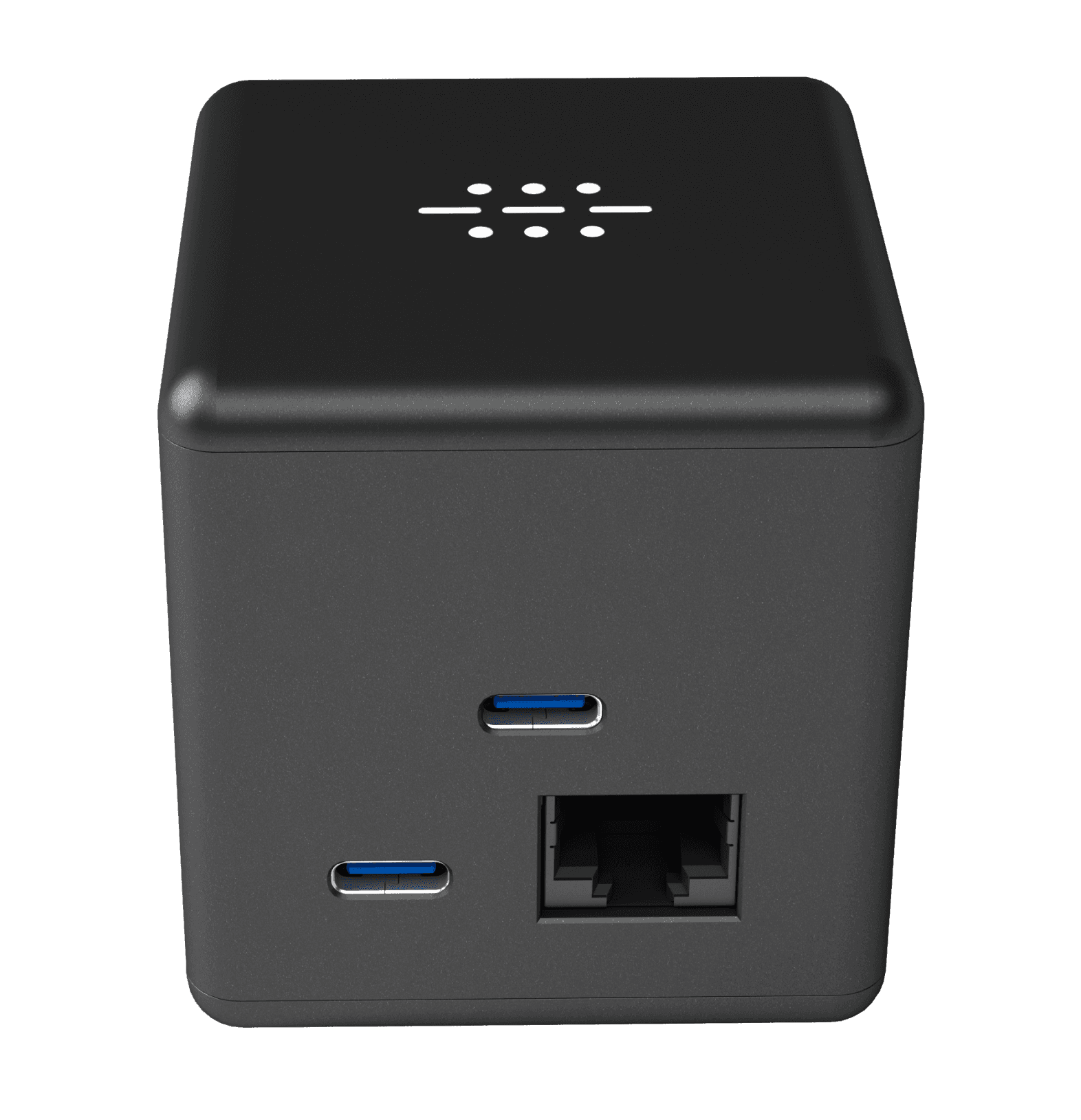

Interface

2x High-Speed USB3.0
1x USB 2.0

3x CAN BUS

PCI-E

2x MIPI / HDMI

4x PWM

40x Digital I/O / 14x Analog I/O
2x ADC / 12x UART / 3x CANBus
3x SPI / 16 word FIFO / 2x I2C
4 byte FIFO / 7x Serial
4 byte FIFO

Sensors

Gravity

LOCATION GPS / Glonass
Galileo / BeiDou

Temperature

IMU 9 DOF
ACELEROMETRO
GIROSCOPO
MAGNETODROMO

Processing & Storage

4x ARM Cortex A53
1x ARM Cortex M4

3D GPU Open GL
VG-2D GPU BitBit

VPU /1080p 60
H.264 / VP8 Encoder

8Gb DDR3
DDR8 RAM

SD CARD SLOT

EXTERNAL STORAGE
READY

Communications

FDD & TDD LTE 150Mbps
50Mbps / SoC 2G/3G/4G

10 / 100 / 1000 Mbps
Ethernet

SDR LONG RANGE & WIDE BAND
FREQUENCY 100Khz-3.8Ghz

Wide Band
Nano Antenna

DUST / 6LPAN

Wi-Fi & BLUETOOTH 5.0
NBioT / GPS 8G95
LoRaWAN LR1110

Abundance is meant to be shared

A low cost satellite that integrates Mars, Moon,
Earth, the ISS and others.

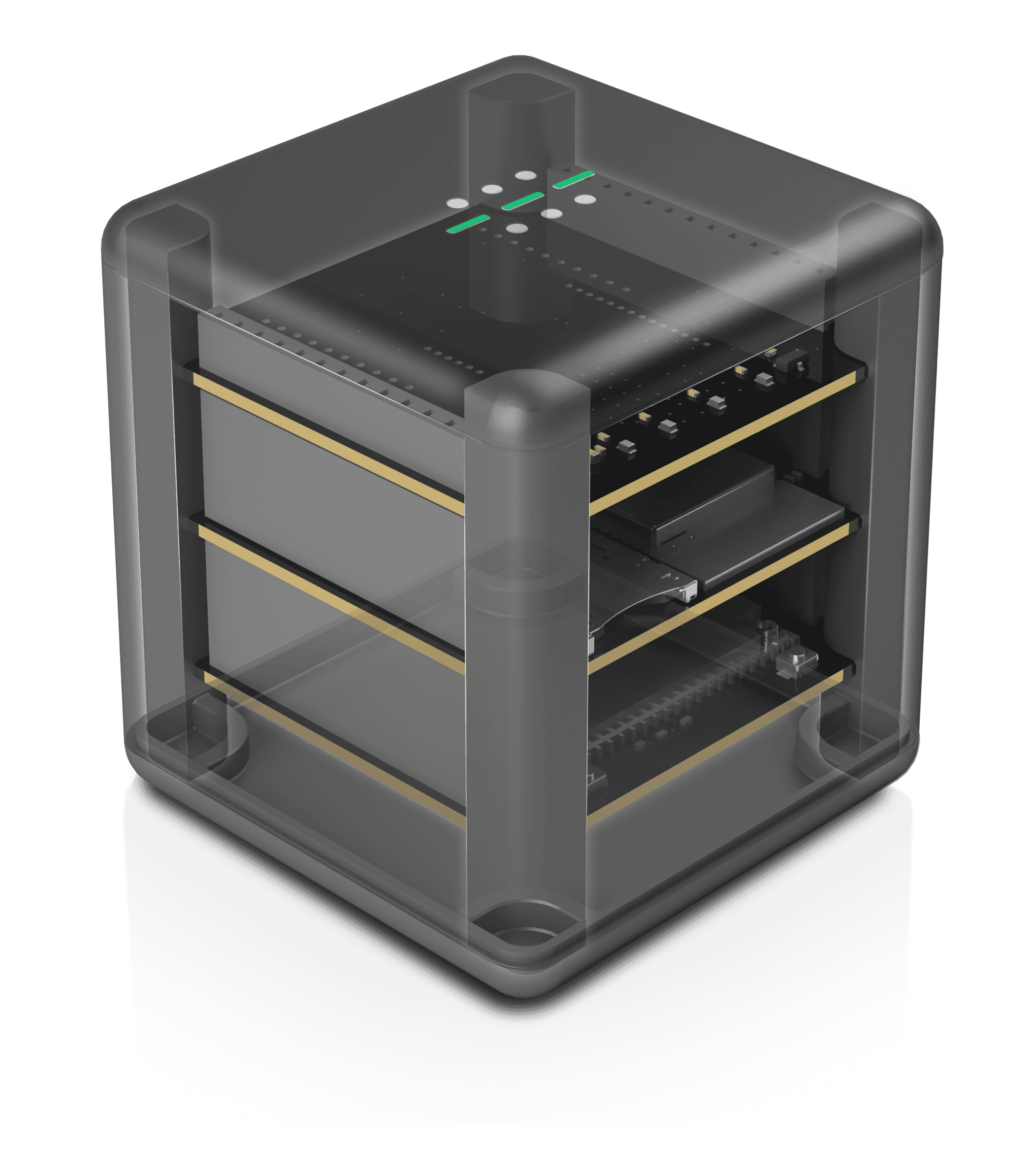

node io system architecture

Real collaborative and distributed processing, file system and communications.

With NIO, you are part of the distributed processing revolution. With our resource-saving Open Space Network, you can contribute processing to our network and the more you contribute, the more you can use.

Packed with revolutionary features.

This is a computer like any other and unlike any other. You’ll be able to perform your everyday tasks with regular apps while unlocking a Universe of new possibilities.

01 02 03 04

01 Processing & Storage

4x ARM Cortex A53 1x ARM Cortex M4
3D GPU Open GL / VG - 2D GPU BitBit
VPU / 1080p60 /H.264 / VP8 Encoder
4Gb DDR3 / DDR4 RAM
All boot modes and scenarios PS connected
peripherals B2B connectors (2 x 13 pin)
SD Card Slot
External Storage Ready
IMU 9 DOF
GNSS / GPS / GLONASS / Galileo / BeiDou

02 Communications

FDD & TDD LTE - 150Mbps/50Mbps SoC with
2G/3G/4G
Long Range & Wide Band frequency operation:
100 kHz-3.8 GHZ
SDR with Lower Bit Error Rate BER for higher
fidelity & reduced package loss.
Wi-Fi and Bluetooth 5.0
NBIOT / GPS BG95
LoRaWAN LR1110
Nano-Cap Antena
10 / T30 / 1000 Mbps Ethernet
DUST/GLPAN

03 Interfacing

2xHigh-speed USB 3.0 / 1 x USB 2.0
PCI-E
3x CAN BUS
2x MIPI/HDMI
4xPWM
40x Digital 1/0 - 14x Analog 1/0 - 2x ADC 12x
UART - 3 x CANBus 3x SPI - 16 word FIFO 2x12C
4 byte FIFO 7x Serial - 4 byte FIFO

03 Dimensions

Height 1.85in
Width 1.85
Depth 1.85
Weight0.30libs
Operating Temperature-40° (to +850

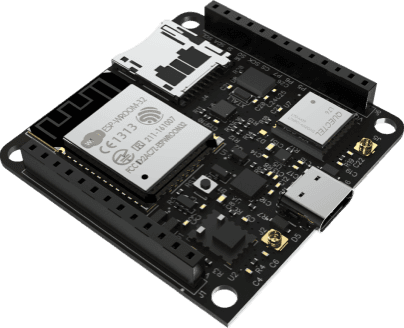

MainBoard

[*] ESP32-WROOM-32D
[*] Dual-core 32bit LX6 microprocessor (up to 240 MHz)
[*] Internal memory size: 448 KB ROM - 520 KB SRAM
[*] Integrated SPI flash: 16 MB
[*] SD card
[*] LED Light port 24 bps
[*] USB C
[*] Bluetooth module
[*] Wi-Fi (802.11 b/g/n)
[*] eSIM: cellular networks access

Integrated Sensors:

[*] Multi-GNSS engine: GPS, GLONASS, Galileo and QZSS
[*] Channels: 99 acquisition - 33 tracking - 210 PRN
[*] Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)
[*] Absolute Orientation (Euler Vector, 100Hz)
[*] Three axis orientation data based on a 360° sphere
[*] Absolute Orientation (Quaterion, 100Hz)
[*] Four point quaternion output for more accurate data manipulation
[*] Angular Velocity Vector (100Hz)
[*] Three axis of 'rotation speed' in rad/s
[*] Acceleration Vector (100Hz)
[*] Three axis of acceleration (gravity + linear motion) in m/s^2
[*] Magnetic Field Strength Vector (20Hz)
[*] Three axis of magnetic field sensing in micro Tesla (uT)
[*] Linear Acceleration Vector (100Hz)
[*] Three axis of linear acceleration data (acceleration minus gravity) in m/s^2
[*] Gravity Vector (100Hz)
[*] Three axis of gravitational acceleration (minus any movement) in m/s^2
[*] Temperature (1Hz)

Integrated Features:

[*] Cryptographic Acceleration
[*] Random Number Generator
[*] RTC for date/time
[*] Programmable FlexIO
[*] Pixel Processing Pipeline
[*] Peripheral cross triggering
[*] Power On/Off management

Module interfaces:

[*] UART, SPI, SDIO, I2C, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, Two-Wire Automotive Interface.
[*] 32 general purpose DMA channels
[*] 31 PWM pins
[*] 40 digital pins, all interrupt capable
[*] 14 analog pins, 2 ADCs on chip

Certifications:

[*] RF Certification: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
[*] Wi-Fi Certification: Wi-Fi Alliance
[*] Bluetooth certification: BQB
[*] Green Certification: REACH/RoHS
[*] Certification: FCC, ISED, CE, KCC, NCC and SRRC

source: https://mirrobo.ru/wp-content/uploads/2016/11/Cadence_Tensillica_Xtensa_LX6_ds.pdf

source: https://www.nxp.com/products/processors-and-microcontrollers/arm-processors/i-mx-applications-processors/i-mx-8-processors/i-mx-8m-mini-arm-cortex-a53-cortex-m4-audio-voice-video:i.MX8MMINI

Ultra low power multi band & Long Range Transceiver

[*] Sub-GHz and 2.4GHz communications ISM
(Industrial, Scientific, Medical) bands and licensed S-Band for satellites.
[*] 150 – 960MHz (Sub-GHz)
[*] 1.9-2.1GHz (S-band)
[*] 2.4 GHz

Compute Board

[*] Quad Arm® Cortex® A53 core up to 1.8GHz per core
[*] 1x Cortex-M4 core up to 400MHz
[*] 3D GPU
[*] 8GB LPDDR4 RAM
[*] 32 GB eMM Storage
[*] Gb Ethernet (RGMII)
[*] SOS Linux
[*]PCIe
[*]S/PDIF TX & RX
[*]I2S/SAI
[*]2x USB2.0
[*]3x UART
[*]2x I2C
[*]1x PWM
[*]2x SPI
[*]1x MIPI CSI (4-lane) camera interface
[*]1x MIPI DSI (4-lane) display interface
[*]Up to 70 x 3.3V General Purpose I/O

Software Defined Radio

[*] Full duplex wide band software defined radio, with coverage of the 100khz to 3.8Ghz RF frequency range
[*] Integrated wide band nano antenna
[*] RF Bandwidth 30.72 MHz
[*] Sample Depth 12 bit
[*] Sample Rate 72MSPS
[*] TX Channels 1
[*] RX Channels 1
[*] Interface USB 3.0
[*] Programmable Logic Gates 16K
[*] Oscillator Precision +/- 1 ppm initial, +/- 4 ppm stable
[*] Transmit Power max 10 dBm (depending on freq.)
